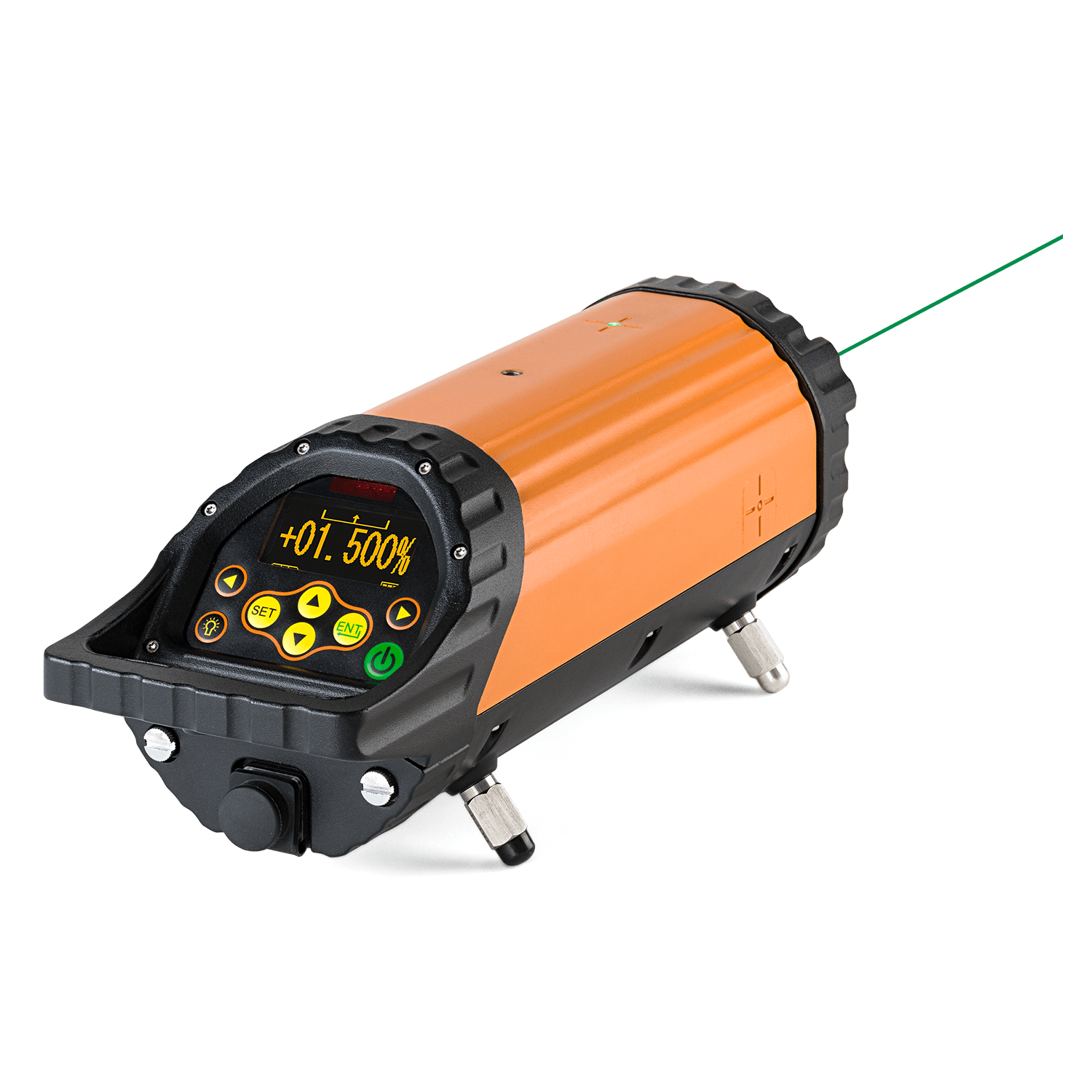

FKL 55-GREEN

Our new generation of pipe lasers incorporate the latest technology for improved site performance.

  • Advanced mechanical engineering technology, temperature stability and grade technology
  • Extremely good visibility of OLED-Display with large figures
  • Long-range IR remote control with 100 m working range
  • Laser spot direction setting: Quick shifting by continued pressing respective button at both laser or remote control

Rugged, waterproof, powerful, easy-to-use and comprehensive range of standard accessories.

To the human eye a green laser dot is more visible than a red laser dot. Green laser technology of the next generation: Temperature range was increased to -20 °C.

Features

  • Robust aluminium housing
  • Easy intuitive operation
  • Fully automatic self-levelling
  • Automatic beam centering
  • Laser start point indication

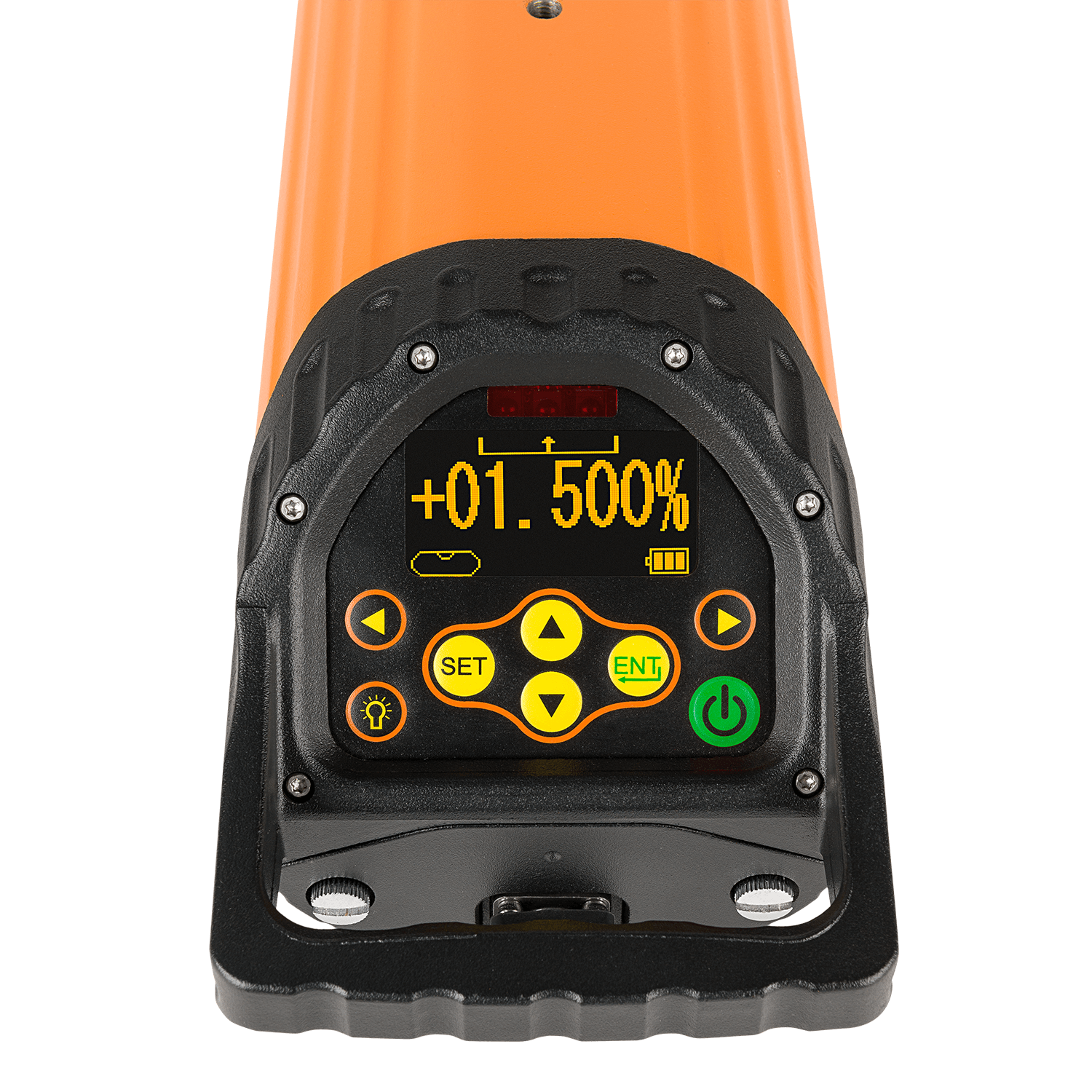

  • Clear easy-to-read OLED-Display
  • IR remote control with long working range
  • Integrated rechargeable batteries
Category:

Description

Technical specifications

Working range: up to 120 m
Accuracy horizontal: ± 5,0 mm / 100 m
Self-levelling range: ± 5°
Grade range: -20% to +30%
Left / right tracking: ± 4°
Laser diode: red
Laser class: 2
Beam diameter: 10 mm
Minimum display reading: 0,000 %
Working range remote control: 50 m (back), 100 m (front)
Dust / water protection: IP 68
Operating time: 24 h
Power supply: 4 x D 8000 mAh NiMH (optionally 4 x D alkaline)
Temperature range: -20°C to +50°C
Weight (laser only): 6 kg
Extended size: Ø 132 mm, L = 380 mm

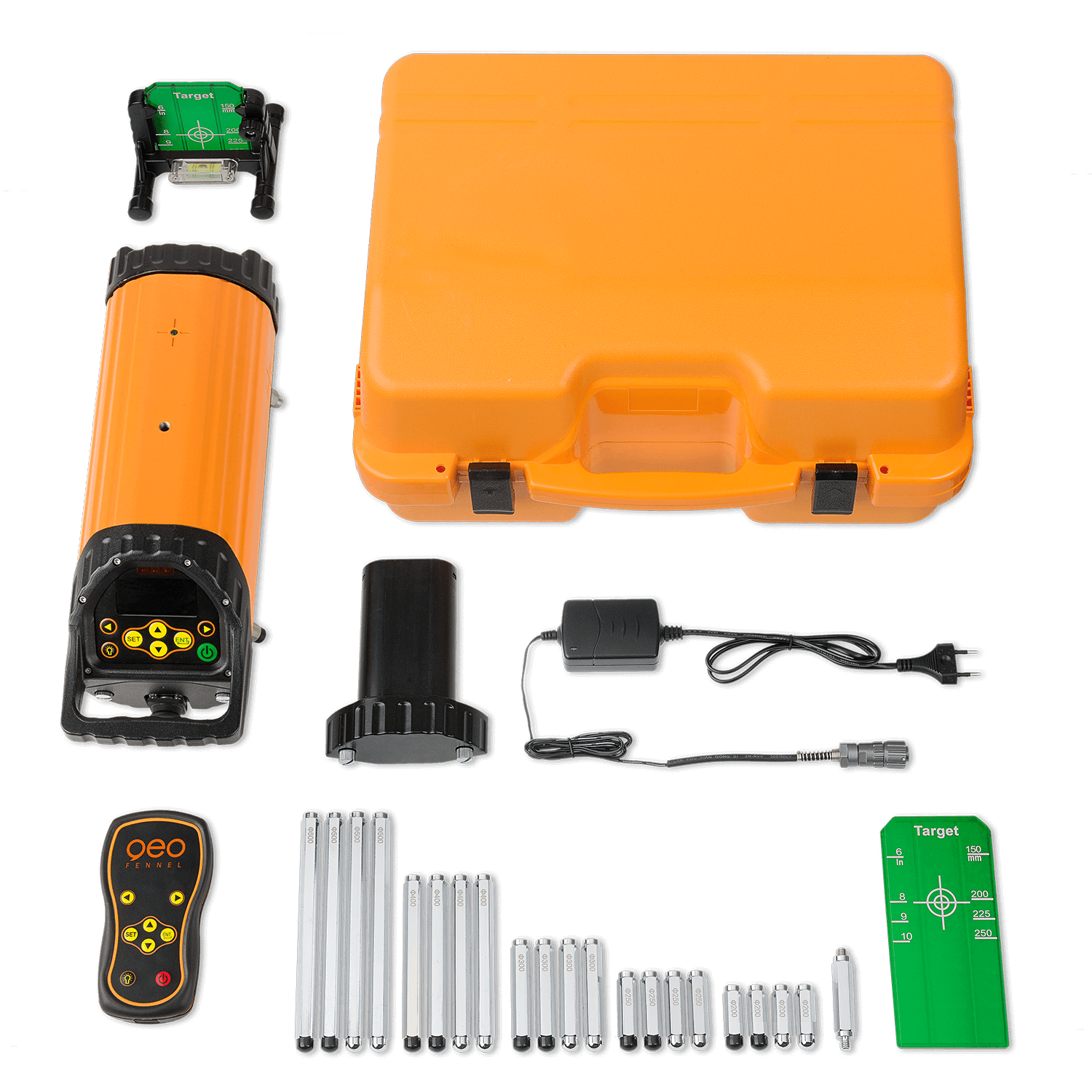

Supplied with

  • Target frame with target DN 150–300
  • Container
  • Pipe Laser
  • IR remote control
  • Leg set DN 500
  • Leg set DN 400
  • Leg set DN 300
  • Leg set DN 250
  • Leg set DN 200
  • Adapter for 3-leg set up
  • Charger
  • Battery case for alkaline batteries
  • Target DN 400–500
