Description
Technical specifications
| Laser diode: | red |
| Self-levelling: | horizontal |
| Visible laser beam: | red |
| Self-levelling range: | ± 5° |
| Accuracy horizontal: | 1,0 mm / 10 m |
| Working range without receiver: | Ø 40 m |
| Working area with FR 45: | Ø 600 m |
| Working area with FR 77-MM: | Ø 300 m |
| Grade: | keine |
| Laser class: | 2 |
| Rotating speed rpm: | 800 |
| Operating time: | 12 h |
| Power supply: | NiMH |
| Dust / water protection: | IP 65 |
| Temperature range: | -20° to +50°C |
| TILT-function: | yes |
| VWS function: | yes |

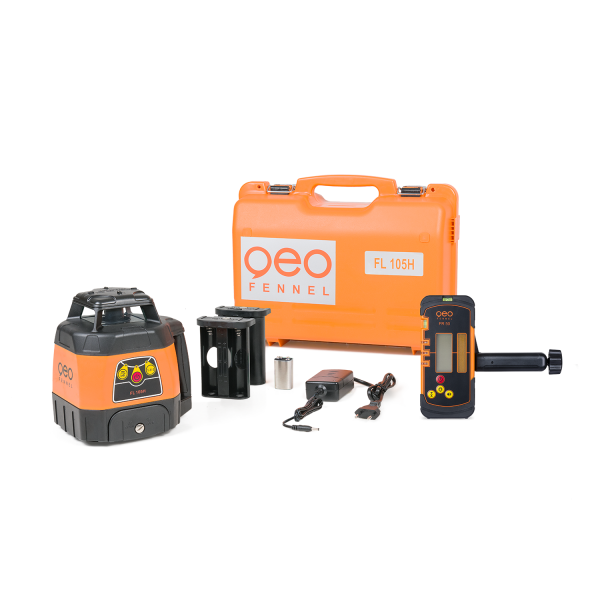

Supplied with

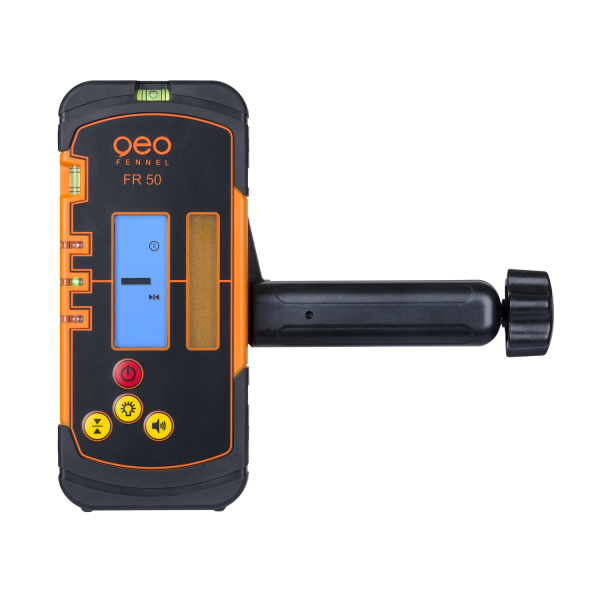

- Receiver FR 50 with clamp for levelling staff
- Rechargeable battery and charger
- Battery compartment for alkaline batteries
- Container
