FL 300HV-G EasyGRADE

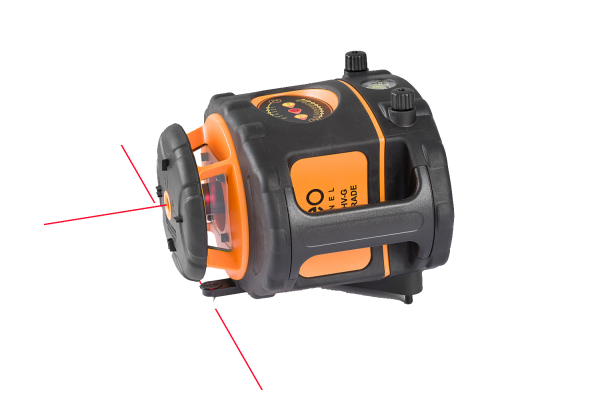

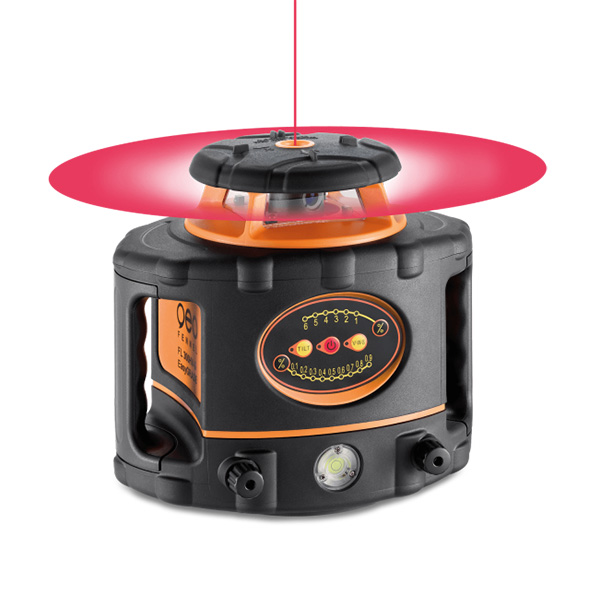

Product information: FL 300HV-G EasyGRADE Rotary Laser Level with Receiver

Many users find dual-axis grade lasers too complicated, expensive or overloaded with features.The FL 300HV-G EasyGRADE rotary laser level with receiver brings a new meaning to user-friendly and ease-of-use!

  • Simply press the „%“ buttons on the keypad to set the desired grade of the X-axis – it‘s as easy as that.

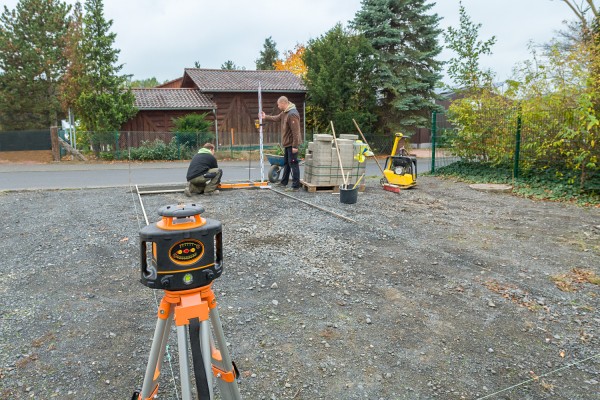

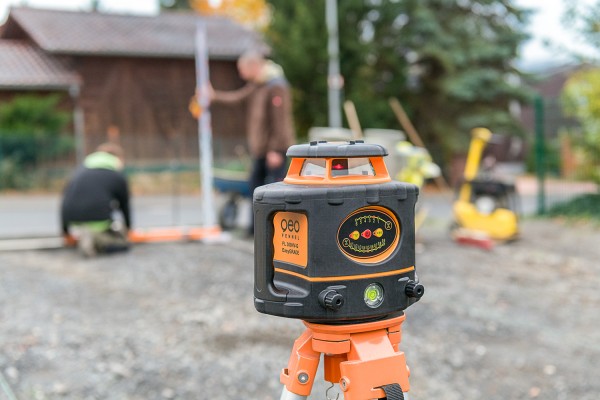

  • Ideal for setting-out gradients for surface drainage, paving, landscaping, etc.
  • The range from 0.1% to 6.9% covers the majority of on-site tasks

2nd axis (Y)

  • Horizontal: Self-levelled -or- manual grade setting with remote control
  • Vertical: axis direction with remote control

Highlights

  • Easy single-grade setting, long working range, TILT-/VWS-Measuring security functions
  • PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser

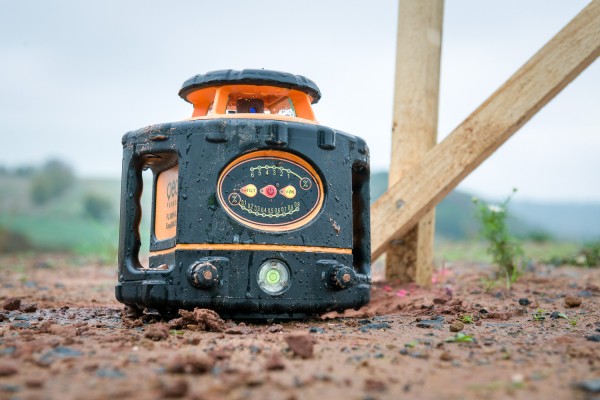

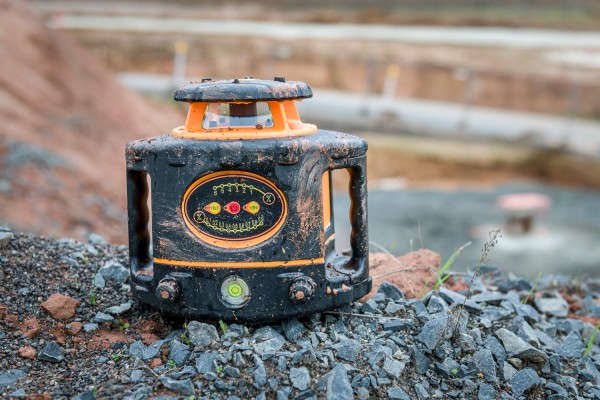

  • IP 66, high accuracy, robustness, Li-Ion battery

Features

  • Horizontal
    • Self-leveling
    • Numerical grade setting in X-Axis
    • Manual grade setting in Y-Axis with remote control
  • Vertical
    • Self-leveling
    • Axis direction in Y-Axis with remote control
  • TILT function
  • VWS function (Vibration-Wind-Security)
  • 90° beam to zenith
  • Dust / water protection IP 66
Laser diode: red
Visible laser beam: red
Self-levelling range: ± 5°
Accuracy horizontal: ± 0,75 mm / 10 m
Accuracy vertical: ± 1,0 mm / 10 m
Working range without receiver: Ø 40 m
Working area with FR 77-MM: Ø 600 m
Working range remote control: IR 100 m
Grade: numerisch
Slope setting manual X-Axis: ± 5° (± 9%), + 0.1 to 6.9% (at 0.1% step)
Vertical axis direction: ± 5°
Laser class: 2
Rotating speed rpm: 800
Operating time: 40 h
Dust / water protection: IP 66
90° plumb beam up: yes
Automatic TILT function: yes
Temperature range: -10°C to +50°C
VWS function: yes

Included in scope delivery:

  • Receiver FR 77-MM with clamp

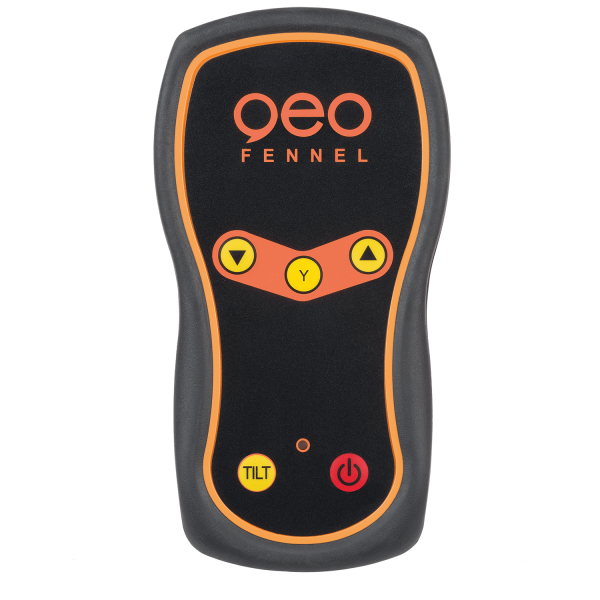

  • Remote control
  • Rechargeable battery (Li-Ion)
  • Intelligent battery charger
  • Battery case for alkaline batteries
  • Floor / wall mount (integrated)
  • Carrying case

Send Us a Message

The easiest grade laser
