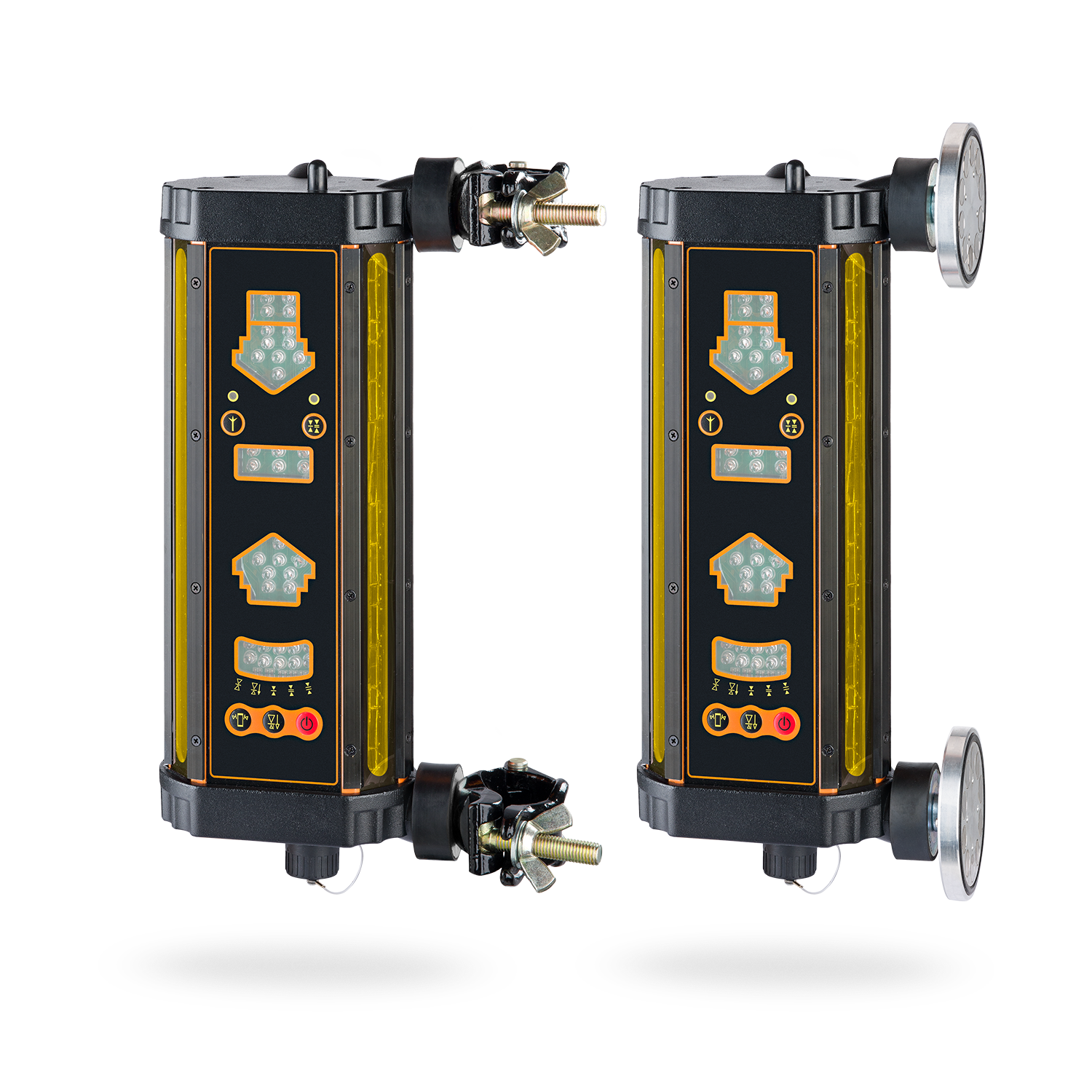

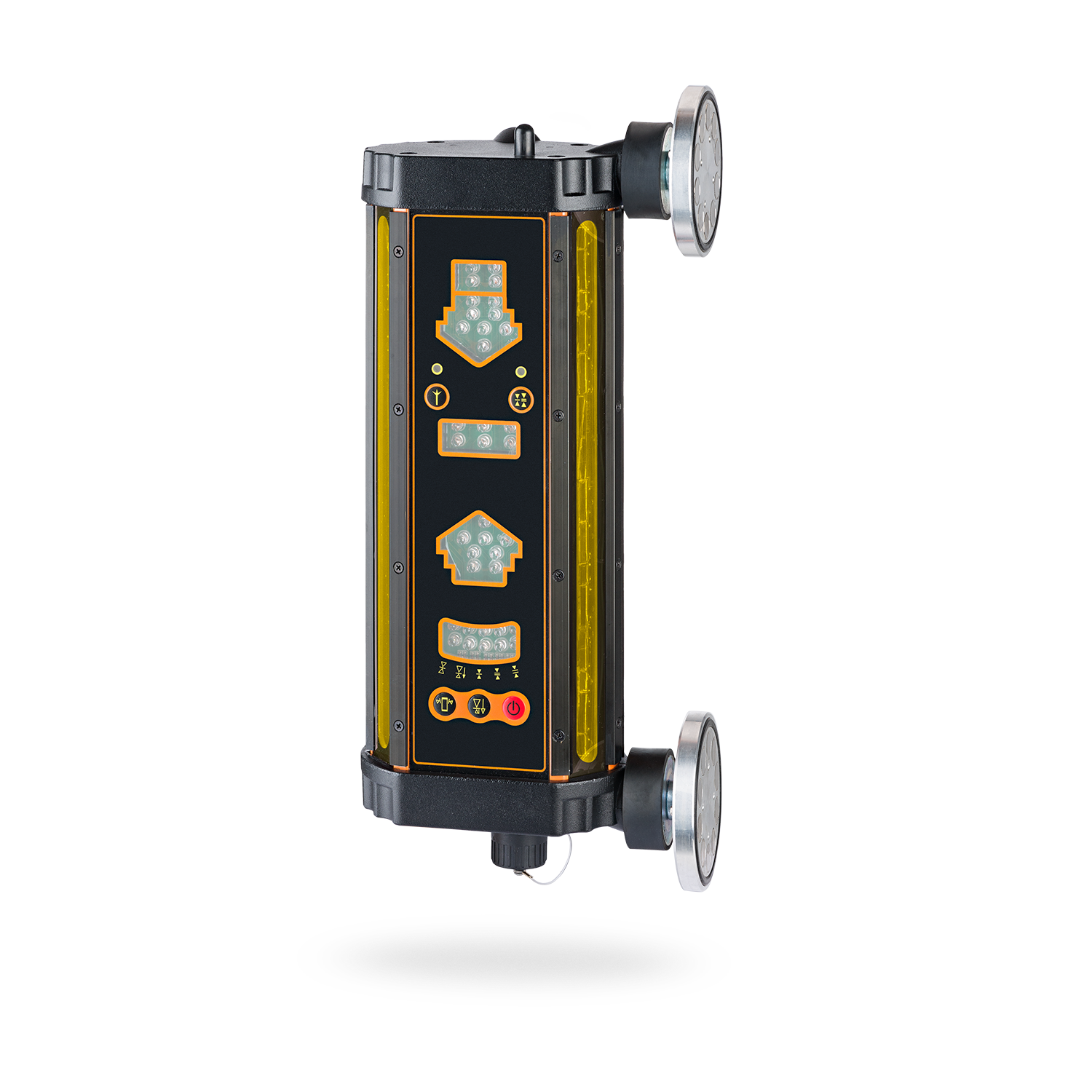

FMR 800-M/C

Machine control receiver used with construction machinery to increase accuracy and boost productivity. For continuous tilt and height control.

  • Bulldozer: Blade tilt and height control
  • Excavator: Bucket tilt and height control
  • RF communication link to the remote display

Features

  • Length of receiving window: 27 cm
  • Will detect the beam from any brand of rotating laser (red)
  • Dust / water protected metal housing
  • Wireless remote display with suction pad and integrated magnets
Category:

Description

Technical specifications

Accuracy fine: ± 2 mm – ± 10 mm
Accuracy coarse: ± 5 mm – ± 23 mm
Dust / water protection: IP 66
Weight: 3,1 kg
Power supply: 7,2 V NiMH 2500 mAh
Temperature range: -20° to +50°C
Extended size: 376 x 180 x 49 mm
Charging time: 4-5 h

Supplied with

  • Machine receiver FMR 800-M / C with built-in rechargeable battery
  • Charger
  • Hard carrying case
