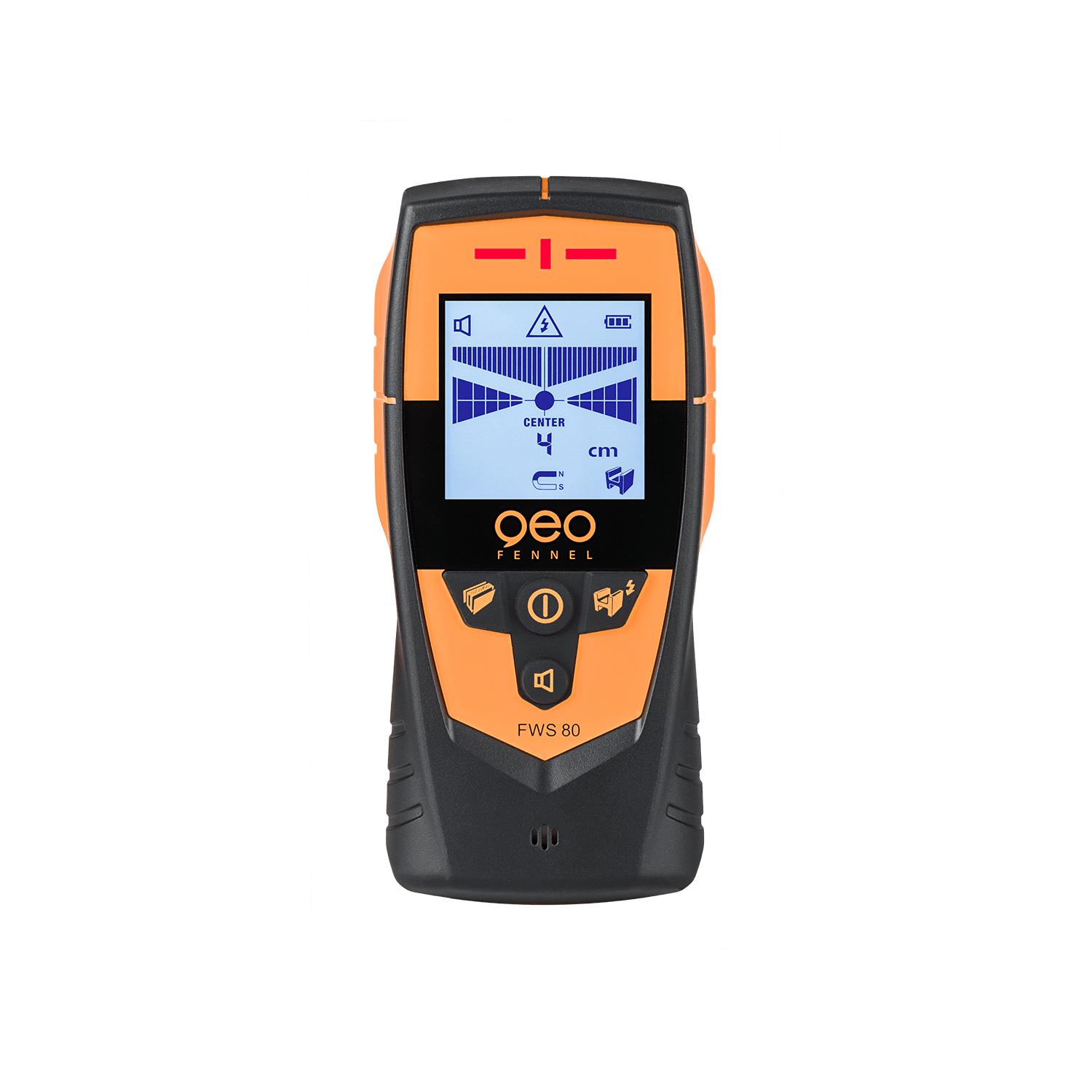

Wall detector FWS 80

Product information “Wall detector FWS 80”

Wall detectors are handheld tools used to detect wood and metal objects within a wall, behind the plasterboard. Wall detector can be used to locate studs, pipes and AC live wires prior to any drilling work.


  • Detection up to 80 mm depth, depending on material
  • Indication of center of object (wood and metal)
  • AC Detection (live wires) and alert at any mode
  • Automatic calibration
  • Illuminated Display

Properties: “Wall detector FWS 80”

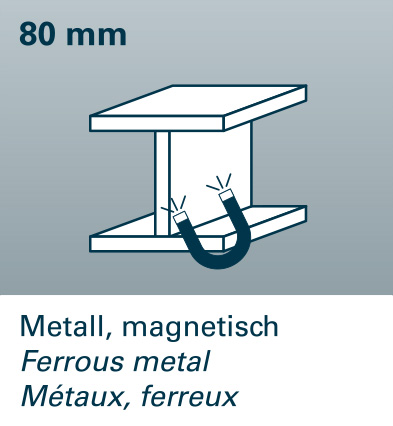

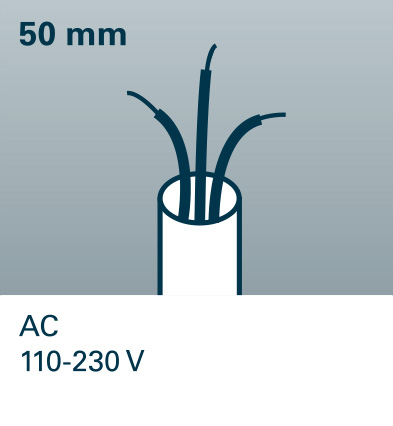

Maximum measuring depth: Ferrous metal (80 mm), Non-ferrous metals (50 mm), Wires/conductors (live wiring) (50 mm), Wood stud (20 mm)
Display: LCD 2.2″
Measuring units: cm, inch
LED indication: red, yellow, green
Dust / water protection: IP 65
Temperature range: -10°C to +50°C
Operating time: 8 h
Power supply: 3 x AAA
Extended size: 149 x 70 x 30 mm
Weight (instrument with battery): 0,15 kg
Display illumination: yes
Automatic calibration: yes
Indication of center of object: yes (wood, metal)
Sound indication: yes
Automatic shut-off: yes
